CIEM

CIEM
UPC (Universitat Politecnica de Catalunya)
Agustin Sanchez-Arcilla

Jordi Girona, 1-3
Campus Nord-UPC, Edif. D1
08034 Barcelona
Spain
http://
ciemlab.upc.edu/en

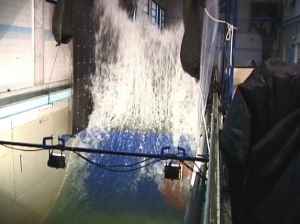

Largest flume with wedge paddle type (deep and intermediate wave condition), 4 m water depth and waves up to Hmax=1.5 m.

Description of facility:

See also: http://ciemlab.upc.edu

Technical data

Flume dimensions
Length 100m
Width 3m
Depth 4.5m
Usual working scales between 1:2 and 1:20
Windows and an optical test section along the flume (based on the clear water provided by its filtering/pumping system) for non-intrusive optical observations.
Recirculating flow allowing the study of wave-current interaction.
Wave generation
Wedge-type wave paddle, particularly suited for internmediate depth waves.
Generation of regular and irregular waves (parametric or user-defined spectra, as well as actually measured time series).
System hydraulically actuated and PC-controlled. Wave heights up to 0.9 m with SWL of 2.65 m.
Usual applications are
Structure functional-hydrodynamic analyses (run-up, run-down, overtopping, reflection and transmission).
Structural stability analyses.
Beach profile morphodynamics.
Wave beach structure interactions (scouring, fluxes through and above the structure, modified profile morphodynamics).
Wave hydrodynamics.
Floating structures such as fish cages, floating breakwaters, buoys, energy extracting devices
Contact
CIEM - LIM/UPC
Canal Investigació i Experimentació Marktima
Laboratori Enginyeria Marktima (LIM UPC)
Universitat Politccnica Catalunya
Jordi Girona, 1-3, Edif. D1
08034 Barcelona, SPAIN
Tel. +34 93 401 6468
Fax. +34 93 401 1861
E-mail. info.ciemlab@upc.edu





Project Reports using this facility Proceedings based on experiments using this facility
SUSCO: Swash zone response Under grouping Storm Conditions Large-scale experiments on the swash zone response under grouping storm conditions
Wave propagation over Posidonia Oceanica Wave propagation over posidonia oceanica: large scale experiments
Dune overwash and breaching Wave storm induced dune erosion and overwash in large-scale flume experiments
Measurements of the wave-induced steady currents outside the surf zone Measurements of wave-induced steady currents outside the surf zone
Measurements of sand transport and its underlying processes under large-scale breaking waves MEASUREMENTS OF SAND TRANSPORT AND ITS UNDERLYING PROCESSES UNDER LARGE-SCALE BREAKING WAVES (SANDT-PRO)
Coupled high frequency measurement of swash sediment transport and morphodynamic SEDIMENT TRANSPORT AND BEACH PROFILE EVOLUTION INDUCED BY BICHROMATIC WAVES WITH DIFFERENT GROUPING PERIODS
Forces on (flood) walls and buildings by wave overtopping FORCES ON (FLOOD) WALLS AND BUILDINGS BY WAVE OVERTOPPING
Submerged Flexible Circular Porous Structures in current and waves SUBMERGED FLEXIBLE CIRCULAR POROUS STRUCTURES IN CURRENT AND WAVES
